Fully Glazed vs Solid Blast Resistant Door: A Complete Comparison
Selecting the right blast resistant door type depends on your facility's visibility requirements, threat profile, and operational constraints. This guide compares fully glazed and solid configurations across performance metrics, design considerations, and industry applications to help you specify the optimal solution.

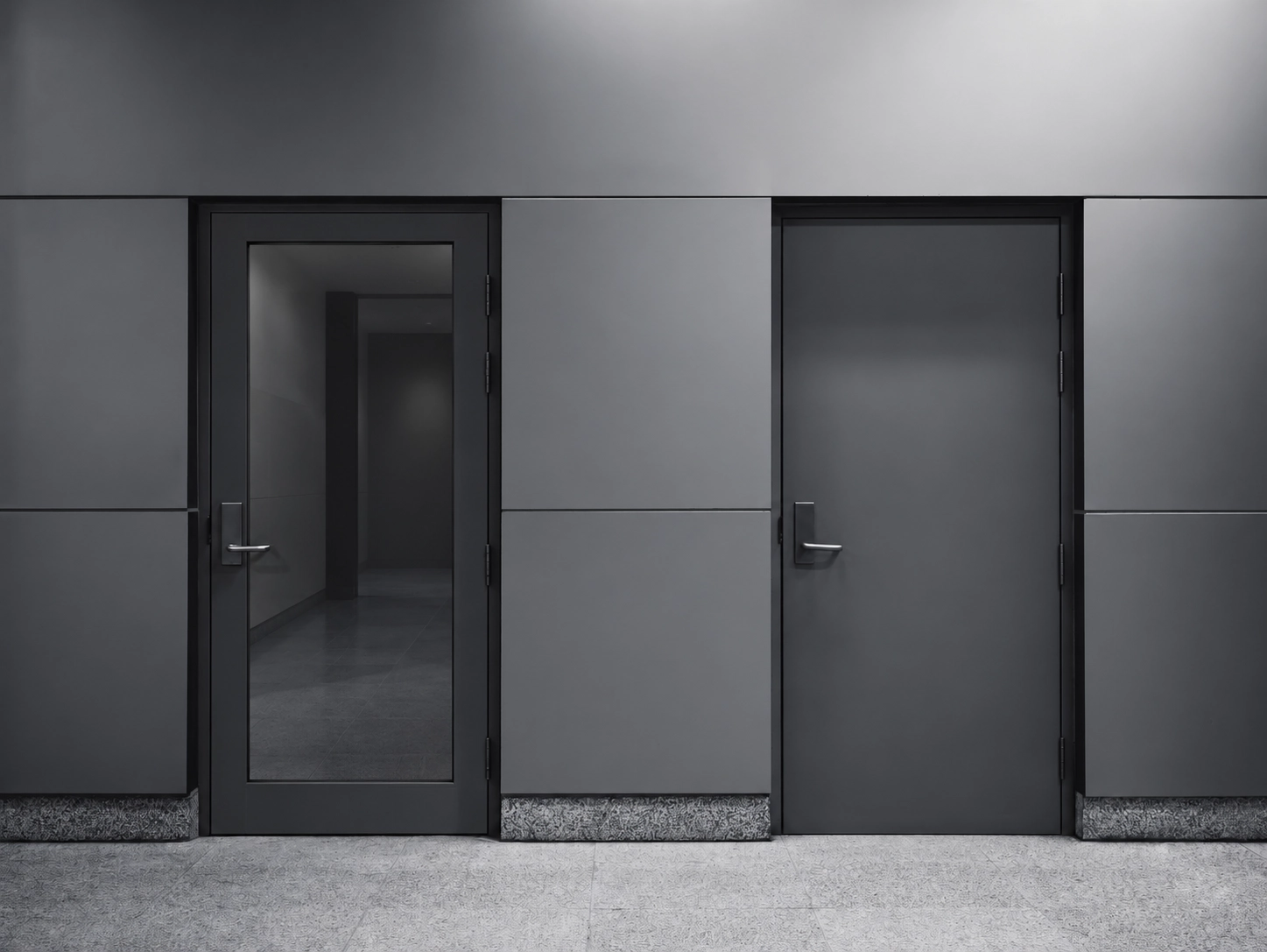

Blast Resistant Door: Fully Glazed vs Solid Specification
Premier Security manufactures both fully glazed and solid blast resistant door variants tested to EXV 10, EXV 12, and EXV 25 standards. Understanding how each configuration performs in isolation and how they integrate into your facility's security architecture is essential for informed procurement.
Specification Comparison: Blast Resistant Door Variants
| Feature | Fully Glazed Configuration | Solid Configuration |
|---|---|---|
| Visibility | Full interior and exterior sight lines maintained | Complete visual concealment; no external sightlines possible |
| Blast Resistant Rating | EXV 10 EXV 12 EXV 25 | EXV 10 EXV 12 EXV 25 |
| Light Transmission | High (ballistic glazing engineered for optical clarity) | None; requires separate lighting solutions |
| Aesthetic Integration | Modern, transparent appearance; suits corporate and institutional settings | Industrial form factor; maximises visible deterrent effect |
| Glazing Standard Compliance | EN 1063 BR2 through BR7 (S or NS spall classification) | N/A; solid construction eliminates glazing fragmentation |
| Thermal Performance | Good insulation; thermal breaks minimise heat transfer | Excellent insulation; solid construction reduces air infiltration |
| Maintenance Requirements | Regular glazing cleaning and periodic seal inspection | Minimal maintenance; durable powder-coated finish |
| Relative Cost Profile | Premium; ballistic glazing and frame engineering add material cost | Lower; solid material construction reduces complexity |
| Deployment Contexts | Corporate offices, embassies, command centres, retail security requiring operational visibility | Military bunkers, classified facilities, covert safe rooms, maximum-threat perimeters |
Fully Glazed Blast Resistant Door: When to Specify
A fully glazed blast resistant door delivers transparent protection, enabling real-time situational awareness whilst maintaining military-grade blast mitigation.
- Preserve sightlines into secured zones without compromising EXV-rated protection
- Project a modern, professional security posture in corporate and government environments
- Enable live CCTV and visual monitoring of entrance points and egress routes
- Support emergency co-ordination protocols where visual contact is operationally critical
- Meet aesthetic requirements whilst delivering certified blast resistance
Industries Prioritising Fully Glazed Blast Resistant Door Selection
Data centres, commercial office suites, government command centres, high-value retail, diplomatic facilities, and any deployment where personnel must maintain visual contact with secure zones benefit most from glazed configurations. Premier's ballistic glazing is engineered to minimise spall and maintain optical clarity under blast pressure, combining transparency with protection.
Solid Blast Resistant Door: When to Specify
A solid blast resistant door provides absolute concealment and represents the gold standard for highest-threat environments where structural integrity and opaqueness are non-negotiable.
- Deliver complete visual concealment; external observation of lock mechanisms or interior layout is impossible
- Eliminate glazing fragmentation risk entirely; no spall classification concern
- Provide superior structural rigidity; ideal for extreme EXV 25 and counter-terrorism applications
- Require minimal maintenance compared to glazed assemblies
- Create visible psychological deterrent in high-threat perimeters
Industries Prioritising Solid Blast Resistant Door Selection
Military installations, classified government facilities, covert safe rooms, chemical and petrochemical plants, and counter-terrorism command centres favour solid configurations. These environments require absolute operational security and zero external intelligence regarding internal infrastructure. A solid blast resistant door removes all visual cues regarding access mechanisms and internal deployment.
Blast Resistant Door Standards: EXV and EN 1063 Ratings Explained
Both fully glazed and solid blast resistant door configurations are tested to identical standards. Your threat assessment determines which EXV rating and optional ballistic certification your deployment requires.
ISO 16933 Blast Severity Classifications
Premier's blast resistant door range is certified to ISO 16933, which defines protection levels using EXV (Explosion External Vertical) and SB (Shock Blast) classifications.
EXV 10 Blast Resistant Door
Protects against blast events generating up to 10 kPa peak incident pressure. Suitable for counter-terrorism level C5 facilities and mainstream commercial applications. EXV 10 protection covers IED and satchel bomb threats at moderate to extended standoff distances, making it appropriate for government offices, embassies, and corporate facilities requiring baseline blast mitigation.
EXV 12 Blast Resistant Door
Rated for 12 kPa peak incident pressure. Provides intermediate protection between EXV 10 and EXV 25. Used in elevated-threat environments including chemical facilities, petrochemical installations, and government sites where enhanced blast load capacity is justified by threat modelling.
EXV 25 Blast Resistant Door
The highest available rating, protecting against 25 kPa peak incident pressure. Engineered for maximum-threat environments including military installations, classified facilities, and extreme counter-terrorism applications. EXV 25 protects against vehicle bombs, large satchel charges, and represents the widest design margin against catastrophic blast events.
EN 1063 Ballistic Glazing Standards (Glazed Configuration Only)
Fully glazed blast resistant door assemblies incorporate ballistic glazing tested to EN 1063, which defines both bullet resistance and spall characteristics.
- BR2 to BR7 Rating: Progressive bullet resistance from handgun to high-powered rifle rounds
- S Suffix (Spall Limiting): Glazing formulation that minimises internal glass fragmentation on impact
- NS Suffix (Non-Spall Limited): Glazing specification used when internal spall risk is lower priority in your threat model
A fully glazed blast resistant door can integrate complementary ballistic and blast ratings (example: BR7 ballistic glazing within an EXV 25 frame) to defend against dual-threat scenarios combining both gunfire and explosive devices.
Specifying Your Blast Resistant Door: Customisation Parameters
Premier's in-house design team collaborates with you to tailor both fully glazed and solid blast resistant door specifications to your operational requirements. Key customisation variables include:
Blast Resistant Door Customisation Options
- Opening dimensions and frame sizing matched to existing architectural openings
- Material finish, powder-coat colour, and aesthetic integration with facility design language
- Hardware selection: handles, locks, electronic access control integration, push-bars
- Glazed vs solid configuration based on your threat profile and operational visibility model
- Multi-standard certification (blast + ballistic + fire ratings on a single blast resistant door)
Frequently Asked Questions About Blast Resistant Doors
Can a blast resistant door be retrofitted into an existing building?
Yes. Premier's blast resistant door is engineered for both new construction and retrofit applications. Our assessment team evaluates existing opening dimensions, structural loading capacity, and access co-ordination to confirm retrofit feasibility and ensure proper installation. Global logistics and assembly processes are tailored to your geographic location.
Does a fully glazed blast resistant door impact building energy efficiency?
No. Ballistic glazing is engineered with thermal breaks and low-emissivity coatings that maintain insulation properties comparable to standard commercial glazing. The structural requirements of blast resistance often improve sealing performance, reducing HVAC load and supporting overall building energy performance.
What is the difference between a blast resistant door and a ballistic resistant door?
A blast resistant door protects against pressure waves and fragmentation from explosive devices (ISO 16933 EXV ratings). A ballistic resistant door protects against projectile impact from firearms (EN 1063 BR ratings). Premier's blast resistant door can be specified with blast protection alone, ballistic protection alone, or both certifications integrated into a single assembly depending on your threat model.
How do I determine the correct EXV rating for my blast resistant door specification?
Your EXV rating depends on formal threat assessment, facility classification, and estimated standoff distance from likely blast sources. Counter-terrorism level C5 facilities typically require EXV 10 minimum. Higher-threat sites, chemical plants, and military installations may require EXV 12 or EXV 25. Premier's project assessment service includes threat modelling consultation to establish the appropriate blast resistant door specification.
Is a solid blast resistant door completely concealed from external observation?
Yes. A solid blast resistant door provides complete visual concealment. External observers cannot determine the locking mechanism type, material thickness, or any architectural details regarding internal layout. This opaqueness is a deliberate security feature in highest-threat environments and classified facilities.
